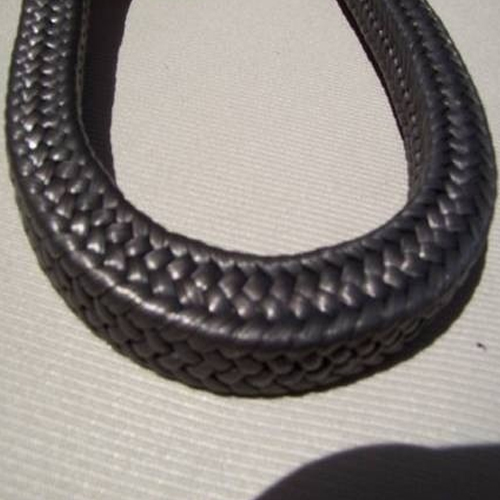

Manufactures of PTFE Teflon® Graphite Packing
PTFE Teflon yarn coated with graphite and lubricated with an inert high temperature lubricant.
Advantages :
Less gland adjustment, easy break-in & even compression in all rings.
Six times better heat conduction as against pure P.T.F.E packings at comparatively high speeds.
Significantly low thermal expansion thus resisting 'over expansion' extrusion under service.
Typical Applications :
Acids, alkalis, solvents, hydrocarbons, inorganic chemical handling equipments. Steam valves, metering pumps, reactors, mixers, autoclave glands.
Application Parameters :
Properties |
|
|
|
pH |
0 - 14 |
||
Temperature (0C) |
- 240 To + 300 |
||
Pressure (Bar) |
150 |
125 |
300 |
Velocity (m/s) |
25 |
3 |
--- |
Sizes |
6mm To 55 mm |
||
Note : Available in Rope & Ring Form.
